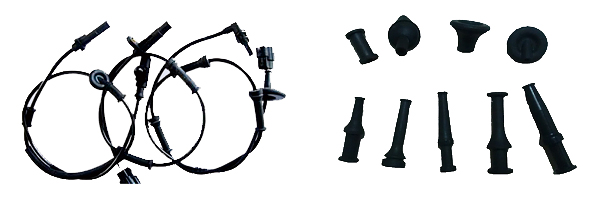

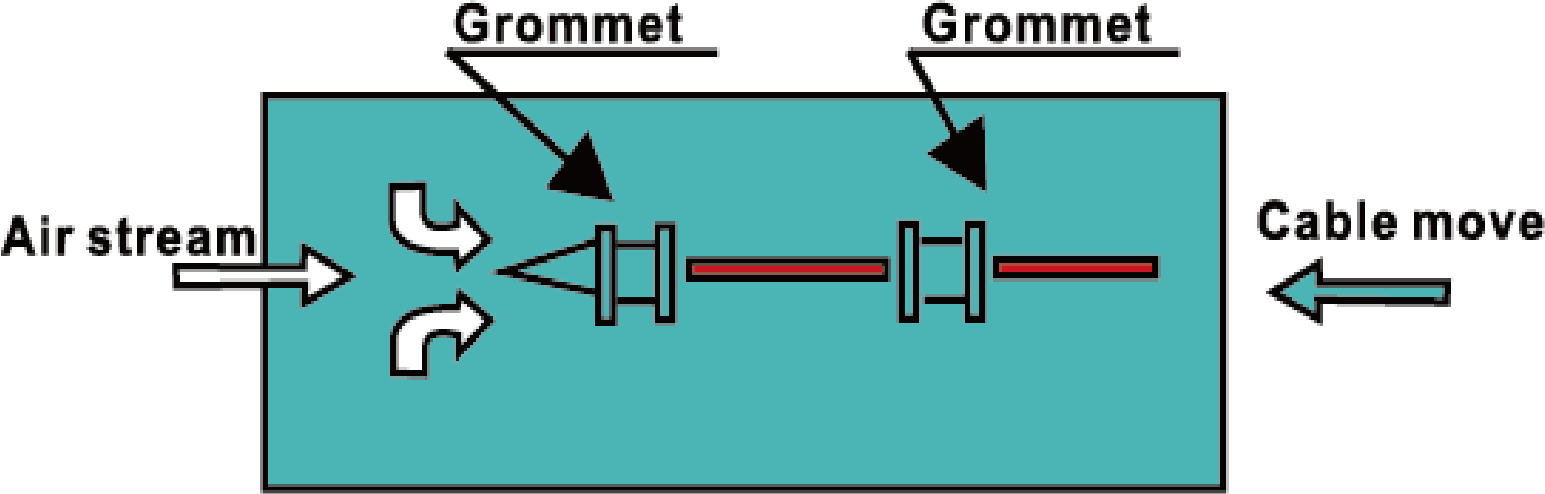

AGA300應用于汽車傳感器線束的橡膠套Grommet組裝。例如輪束傳感器線束,ABS線束……機器為自動組裝,當操作人員將線插入第一個型腔口后,機器將自動完成所有的橡膠套組裝。機器的平臺概念和膨脹原理保證了每個橡膠套在線束上的位置的準確和一致性。

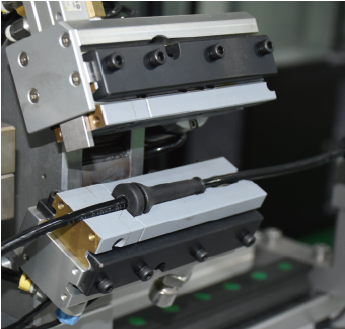

氣動型腔有兩部分組成,上模和下模。每個型腔都裝有檢測線和橡膠套有無的傳感器,保證了在大量生產的情況下不會產生漏穿。

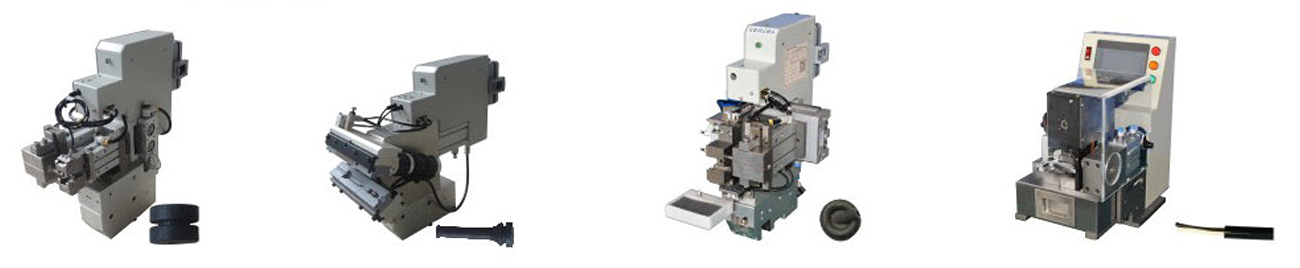

可選組件:

| 線外徑 | 4-10mm |
| 橡膠套最小間距 | 10mm |
| 加工時間 | 3-15s (Depend on grommet number and cable length) |
| 機器循環時間 | 5-20s (Depend on operator and product) |
| 電源 | 220V 50Hz |
| 氣源 | 5-7 Bar
|
| 設備尺寸 | L1810*W720*H2100 mm |
| 凈重 | 420KG |
Important Notice:ASTI recommends that samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine
|
